BIM structural services Delaware teams use turn a renovation's structural risk into a solved problem before a single wall comes down. Engineers, fabricators, and design-build firms working from Wilmington to Dover rely on coordinated Revit models to confirm that beams, columns, and connections actually fit before steel or concrete reaches the site. Get that modeling wrong, or skip it, and the first "clash" shows up as a change order mid-construction.
Most providers that rank for this term are generic outsourcing shops serving any AEC client, anywhere. What's missing from most of those pages is the renovation-specific angle: Delaware has a lot of older housing stock and additions where the original drawings are incomplete, outdated, or simply wrong, so structural BIM has to start by verifying what's actually there, not just modeling what the plans say should be there.
What's Included in Structural BIM Services

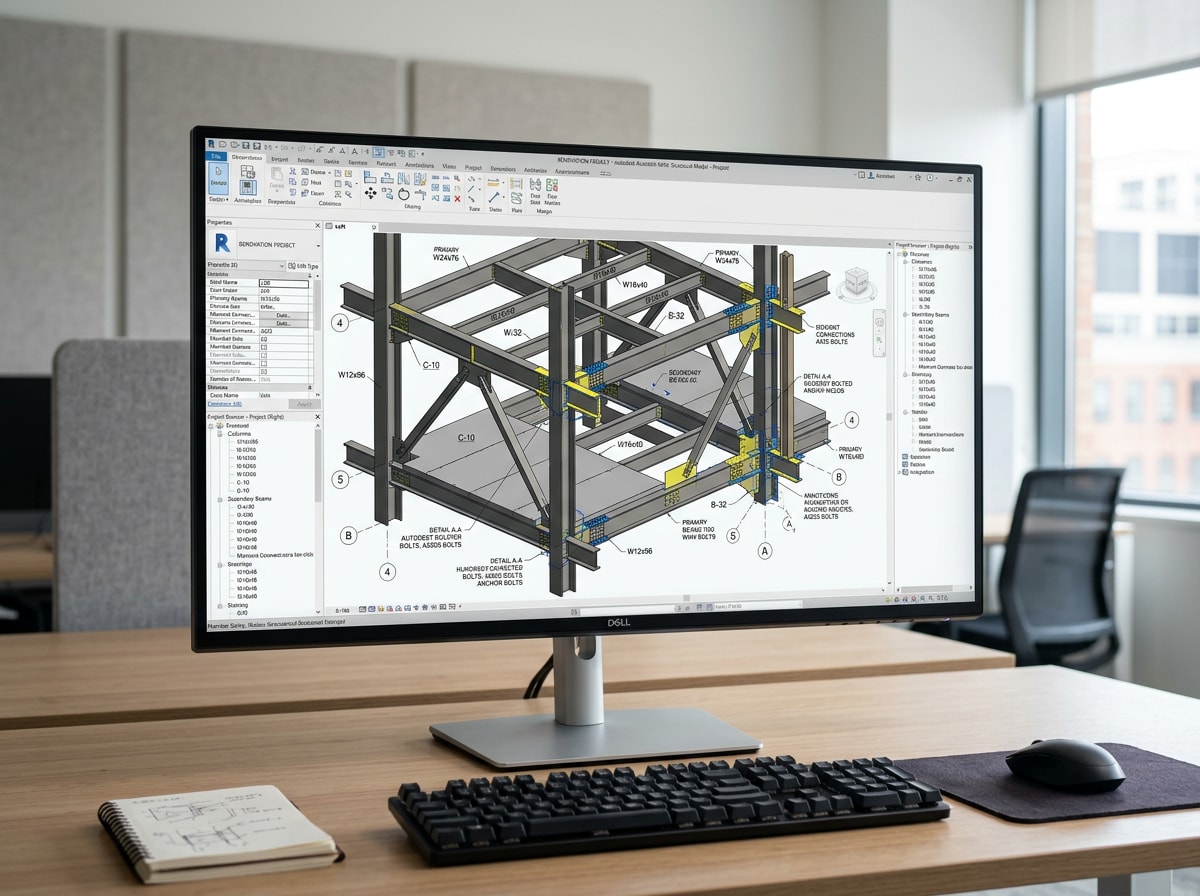

Structural BIM services cover everything between concept and a fabrication-ready model:
- Rebar detailing and reinforcement schedules
- Structural steel detailing and connection design
- Shop and fabrication drawings
- Parametric component libraries (bolts, bars, embeds)
- As-built drawings and construction documentation
- Precast detailing and erection sequencing
- 4D scheduling tied to the construction timeline
A properly built structural model isn't a static 3D picture. It's a working dataset that engineers and fabricators pull dimensions, bolt lists, and connection details from directly, and it has to hold up against code, including safeguards from hazards associated with the built environment that the International Building Code is built to provide and the load criteria set by ASCE/SEI 7-22, which describes the means for determining design loads on a given structure.
Here's how deliverables typically shift by structural system:
| System | Primary Deliverables | Common Use Case |
|---|---|---|
| Steel | Connection design, shop drawings, Tekla detailing | Additions, mid-rise commercial, warehouses |
| Concrete | Rebar detailing, formwork coordination, pour sequencing | Basements, foundations, parking structures |
| Precast | Panel modeling, erection drawings, embed coordination | Industrial facilities, tilt-up builds |
Why Renovation and Luxury Addition Projects Need Structural BIM First
Most structural BIM content online is written for ground-up commercial construction. That's not where most structural risk lives in Delaware.
On a recent basement renovation, a structural model flagged a beam-to-column connection that conflicted with an existing mechanical chase, something the original 1980s drawings never captured. Catching that in the model, instead of after demolition, avoided a fabrication delay and a rework order that would have stalled the whole project.
That pattern repeats constantly on high-end remodels. Removing a load-bearing wall for an open-concept kitchen, dropping a luxury basement renovation below grade, or building out a custom luxury wine cellar with a full racking and refrigeration load all touch the existing structure in ways the as-built drawings rarely describe accurately. The same is true for high-end remodeling projects that reroute mechanical systems through framed cavities that were never drawn to scale.
This is the real value of structural BIM on a renovation: it's not modeling intent, it's modeling what's actually there before anyone cuts into it.
Scan-to-BIM: Verifying What's Actually Behind the Wall

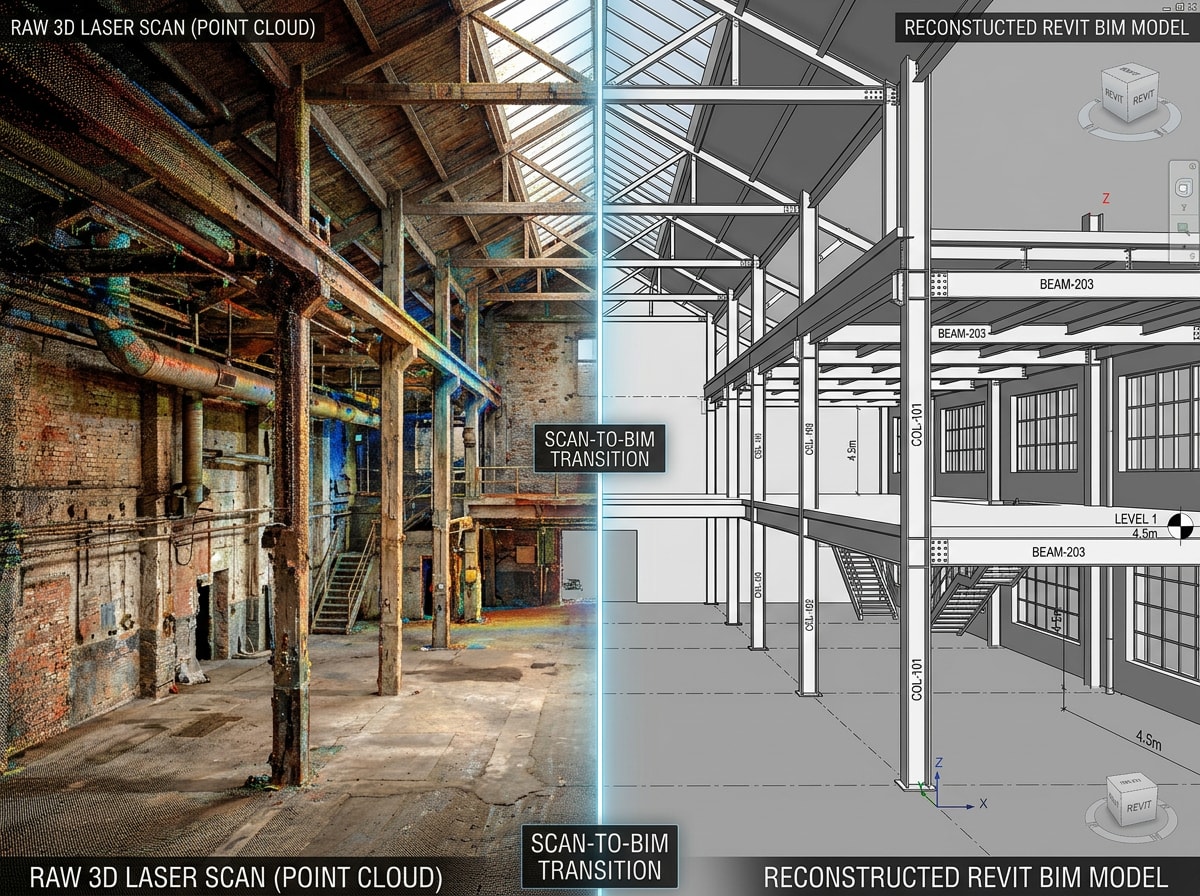

For Delaware's renovation-heavy building stock, scan-to-BIM converts laser-scanned point cloud data into a verified digital baseline before design work starts. This matters most when existing drawings are outdated, missing, or wrong, which is common in older homes and commercial buildings across Delaware.
The workflow uses laser survey data to build a model that gets validated against actual field conditions. For structural work specifically, that means columns, beams, and foundations get checked against real dimensions, not assumed ones, before any demolition or framing plan moves forward.
Supported point cloud formats typically include RCP, RCS, and E57 files. Those files get cross-checked against field measurements before the model becomes the basis for design.
BIM Clash Detection: Catching Problems Before the Jobsite Does
Clash detection runs through nearly every BIM project, and it matters most on structural elements because the cost of a missed clash goes up the later it's found.
The sequence generally follows the construction timeline. Clashes caught early on columns, beams, and foundations cost far less to fix than ones caught after steel is already fabricated. Running structural clash checks against MEP and architectural trades through a federated model before fabrication is what prevents the RFIs and rework that stall a schedule.
This is also where scheduling discipline pays off. If your project involves multiple trades and a tight sequence, it's worth reading how construction project management services in Delaware keep BIM coordination, permitting, and trade scheduling moving together instead of in silos.
Steel Detailing for Structural Framing
Steel detailing sits close to structural BIM but earns its own line item because it feeds fabrication directly. Deliverables typically include:
- Quantity take-offs and bill of materials
- Steel connection design
- 2D drafting paired with 3D modeling
- Shop and fabrication drawings
- Miscellaneous and ornamental metal detailing

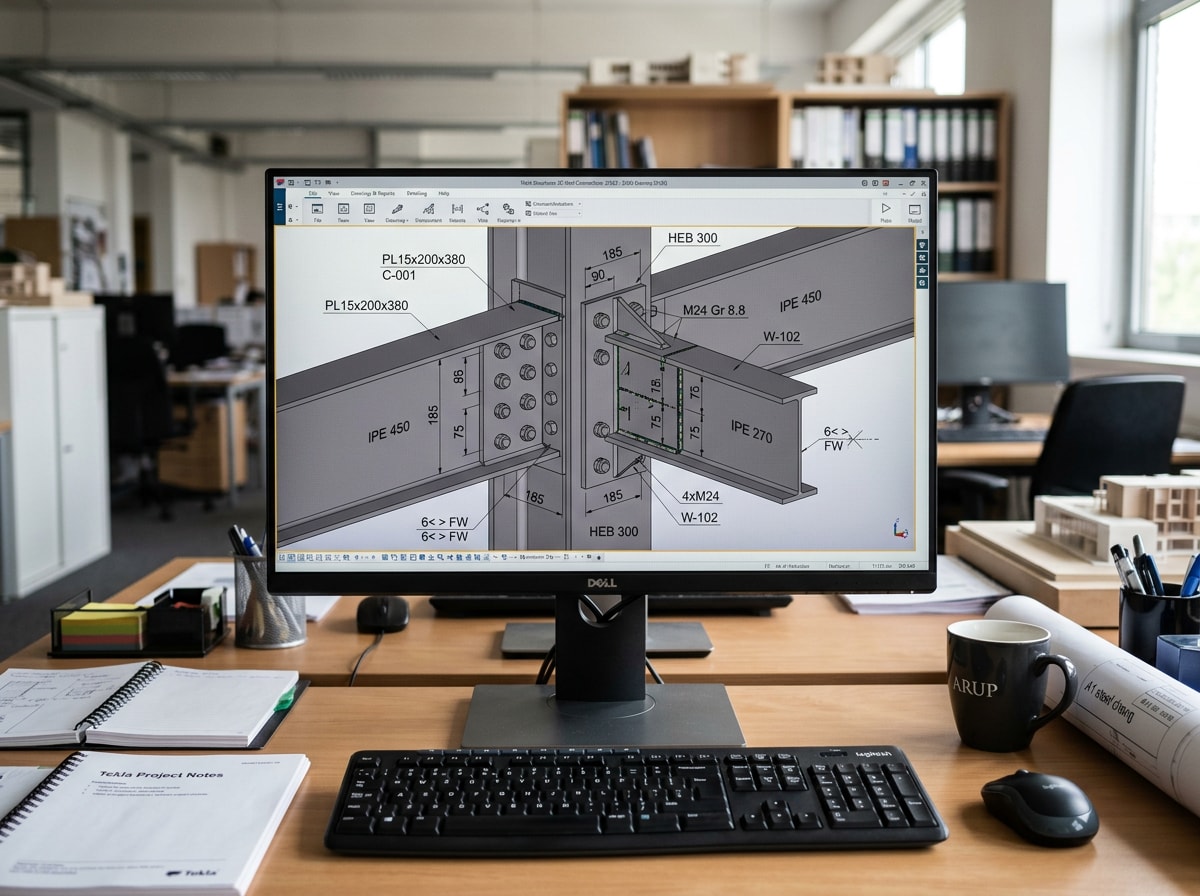

Many fabricators specifically ask for Tekla modeling because it handles connection-level detail and bolt lists more precisely than generalist BIM software. That precision also matters for interior structural work, heavy stone surrounds, custom steel stair stringers, or the steel support a furniture-grade millwork installation needs to hang correctly.
Understanding LOD for Structural Models
Level of Development, or LOD, describes how much reliable detail a model element carries at a given stage. It's one of the most common questions buyers ask before hiring a BIM provider, and it's worth getting right before signing a scope of work.
Engineers start at LOD 100 with spatial volume allowances for core walls, then place generic wide-flange shapes at approximate grid intersections at LOD 200. LOD 300 sizes members accurately along with sleeve openings for MEP, LOD 350 adds base plates, stiffeners, and splice joints, LOD 400 articulates full rebar geometry and weld symbols ready for CNC cutting, and LOD 500 records verified pile cap coordinates and actual concrete test data.
| LOD | What It Means | Typical Project Stage |
|---|---|---|
| 100 | Conceptual massing, no sizing | Early feasibility |
| 200 | Approximate geometry, generic shapes | Schematic design |
| 300 | Accurate geometry, coordination-ready | Design development |
| 350 | Connections and interfaces modeled | Construction coordination |
| 400 | Fabrication-ready detail | Shop drawings, steel/precast |
| 500 | Field-verified as-built | Closeout documentation |
This framework comes from the specification that defines and illustrates characteristics of model elements of different building systems at different levels of development, intended to help explain the LOD framework and standardize its use set by the BIM Forum. The official LOD Specification is the reference most contracts and BIM execution plans point back to.
MEP Coordination Alongside Structural BIM
Structural models don't exist in isolation. They have to stay clash-free against mechanical, electrical, and plumbing routing throughout the building, and that becomes more complicated in a renovation where ceiling cavities and chases weren't designed for today's HVAC or electrical load.
Rather than treating structural and MEP as separate services, the goal is keeping both models accurate and synchronized at the same time, including when a project adds a custom sauna or bar build-out that needs dedicated ventilation, drainage, or power routed through existing framing.
Start your project with a structural walkthrough before design locks in, and it's far cheaper to adjust a model than to adjust a finished wall.
FAQ
What are structural BIM services?
Structural BIM services involve building detailed digital models of beams, columns, foundations, and slabs that support accurate detailing, code compliance checks, and clash avoidance against other building systems before construction begins.
What's included in BIM-based shop drawing support for contractors?
Shop drawing support translates a coordinated model into installation-ready information for trade contractors and fabricators, including trade-specific layouts, LOD-aligned outputs, and detailing built to support prefabrication.
What's the difference between LOD and Level of Detail?
Level of Detail describes how much an element visually shows. Level of Development describes how reliable that element's information actually is, and whether a team can build from it without verifying it further.
Do structural BIM providers support LOD 400 fabrication-ready models?
Yes, when the project calls for it. LOD 400 includes full connection geometry and weld detail, which is what shop drawings and CNC fabrication actually require, versus the coordination-level detail of LOD 300 or 350.
What software is used for structural BIM modeling?
Autodesk Revit is the standard for model authoring and multi-trade coordination. Tekla is typically layered in for steel-heavy projects because it handles bolt lists and connection detail with more precision. Navisworks is the common tool for federating models and running clash detection.
How much does structural BIM modeling cost?
Pricing varies widely by project type. A small renovation costs far less than a mid-rise commercial build, and price scales with LOD requirements and complexity, like steel connections, precast elements, or rebar density. A scope-based quote is more reliable than a flat rate.
